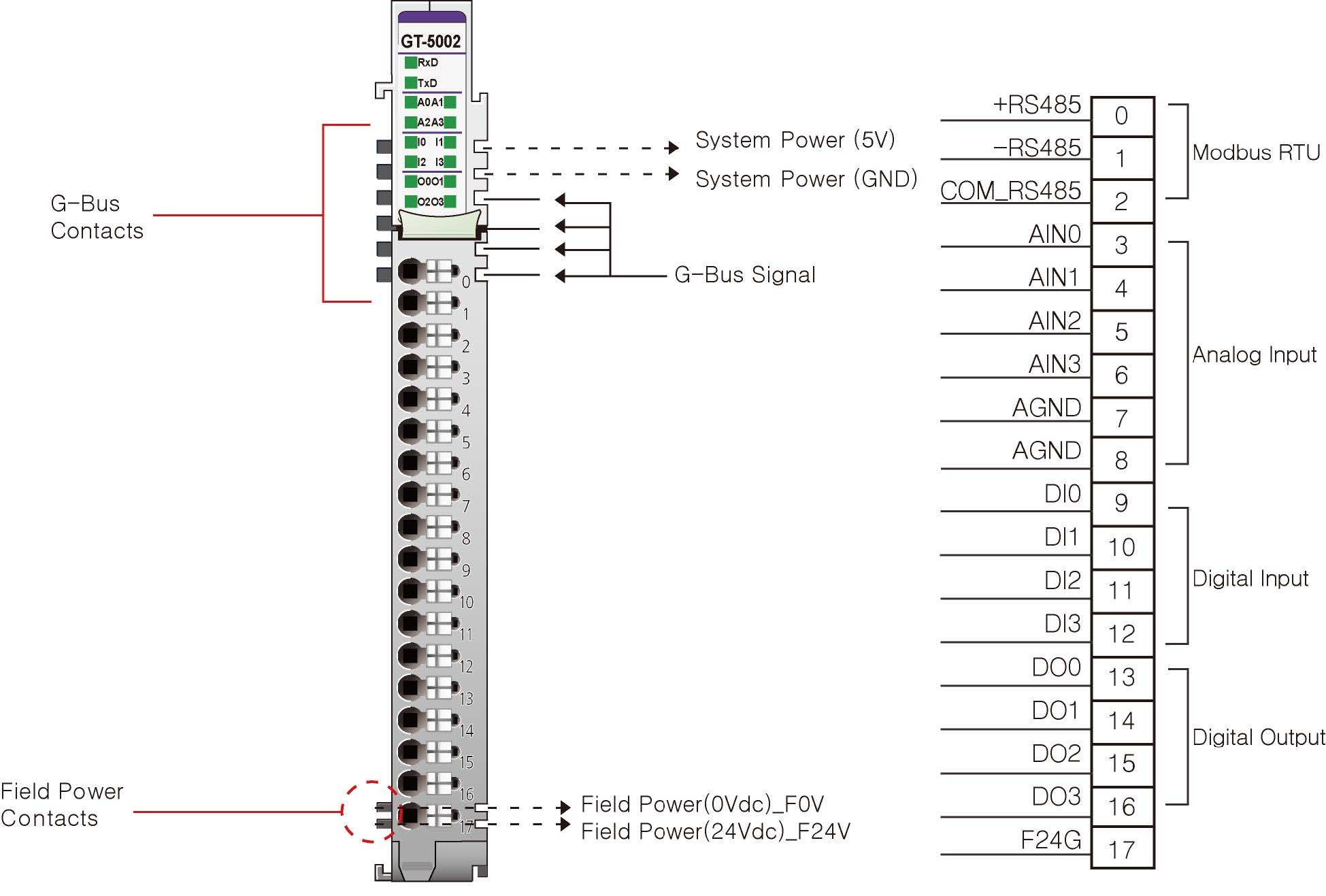

Analog input specification |
|
|
Inputs per module |
4 Channels single ended, non-isolated between channel |
|
Indicators |
4 Green Input status |
|
Resolution in Ranges |
16 bits (Include Sign) 15 bits : 0.31mV/Bit(0~10V) 15 bits : 0.15mV/Bit(0~5V) 15 bits : 0.12mV/Bit(1~5V) |
|
Data Format |
16bits Integer (2's complement) |
|
Module Error |
±0.1% Full Scale @ 25℃ ±0.3% Full Scale @ -40℃, 60℃ |
|
Input Impedance |
470kΩ |
|
Diagnostic |
Diagnostic Field Power Off : LED Blinking Field Power On : LED Off < 2% (Maximum Input Value) Field Power On : LED On > 2% (Maximum Input Value) |
|
Conversion Time |
0.6msec / All channels |
|
Filter |
Max. 64 samples filtering, parameterisable |
|
Common Type |
2 Common, AGND |
|
Digital input specification |
|
|
Inputs per module |
4 points Sink type |
|
Indicators |
4 green input status |
|
On–state voltage |
24Vdc nominal (≤ Field Power) 14Vdc ~ 28.8Vdc @ 60℃ |
|
On-state current |
4.0mA @ 24Vdc 4.8mA @ 28.8Vdc |
|
Off-state voltage |
12.5Vdc @ 25℃ |
|
Input signal delay |
OFF to ON : Max. 0.4ms ON to OFF : Max. 0.5ms |
|
Input filter |
Adjustable, up to 10ms |
|
Nominal input impedance |
5.9K ohm typical |
|
Digital Output specification |
|
|
Output per module |
4 points source type |
|
Indicators |
4 green output state |
|
Output voltage range |
24Vdc nominal Min. 18Vdc ~ Max. 28.8Vdc |
|
On-state voltage drop |
0.3Vdc @ 25℃ 0.5Vdc @ 60℃ |
|
On-state min. current |
Min. 1mA |
|
Off-state leakage current |
Max. 10uA |
|
Output signal delay |
OFF to ON : Max.0.3ms ON to OFF : Max.0.3ms |
|
Output current rating |
Max. 0.5A per channel / Max. 2A per unit |
|
Protection |
Over current limit : Min 12A@ 25℃ per each channels Thermal shutdown : Typical. 175℃ Short circuit protection |
|
ModbusRTU Specification |
|
|
Type |
Slave node (RS485 for MODBUS RTU) |
|
Baud Rate |
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps |
|
Indicator |
2 LED 1 Green, Receive Data (RXD) 1 Green, Transmit Data (TXD) |
|
General specification |
|
|
Power dissipation |
Max. 55mA @ 5Vdc |
|
Isolation |
I/O to Logic : Photocoupler Isolation Field power : Non-Isolation |
|
UL Field Power |
Supply Voltage : 24Vdc nominal, Class 2 |
|
Field Power |
Supply Voltage : 24Vdc nominal Voltage Range : 18Vdc ~ 28.8Vdc Power Dissipation : Max. 45mA @ 24Vdc |
|
Wiring |
I/O Cable Max. 0.823mm2(AWG 18) |
|
Weight |
63g |
|
Module Size |
12mm x 109mm x 70mm |
